Int Halyard Deluxe Flagpole
Save 38%
IH Deluxe Flagpole - Internal Halyard

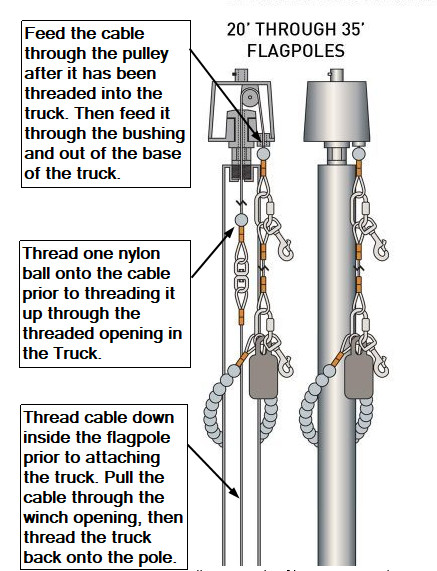

These internal halyard flagpoles contain a winch mounted inside the flagpole shaft, operable only with a removable crank handle. As the stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of the shaft, where the retainer ring provides a sliding anchor.


A counterweight, heavily coated with neoprene, attached to the retainer ring, allows the halyard to be lowered for fastening or removing the flag. The winch is gearless and self-locking at any point, eliminating the need for a separate brake. This direct drive winch provides rapid raising and lowering of the flag with little effort. This design does not require any welding, thus avoiding discoloration when an anodized finish is desired. No monthly lubrication is needed and this winch system is easily adaptable to existing on-site flagpoles.

$1,847.95
$3,000.00
ECX20IH-SAT

IH Deluxe Internal Wire Halyard system

Internal Halyard Ground Set Conde Tapered Aluminum Flagpoles



The Deluxe Series Internal Rope Halyard System.

These internal halyard flagpoles contain a winch mounted inside the flagpole shaft, operable only with a removable crank handle. The winch is gearless and self-locking at any point, eliminating the need for a separate brake. This design doesn't require any welding, thus avoiding discoloration when an anodized finish is desired. No monthly lubrication is needed and this winch system is easily adaptable to existing on-site flagpoles.



Internal Wire Halyard Pole Specifications

  • * Cast aluminum revolving truck with enclosed stainless steel bearings and raceway
  • * Stainless steel cable halyard assembly
  • * Deluxe flag arrangement w/stainless steel quick links
  • * Stainless steel flag snaps
  • * Retainer ring and counterweight
  • * Spun aluminum flash collar
  • * Galvanized steel foundation sleeve
  • * Add optional ornament toppers

All poles are FOB the factory, with freight quoted on request.

FWS - Stands for Flagged Wind SPeed on the Model Name

STANDARD ACCESSORIES
    • Cast aluminum revolving truck with enclosed stainless steel bearings and raceway
    • Stainless Steel Cable Assembly
    • Deluxe Flag Arrangement
    • Retainer ring and counterweight
    • M-Winch System
    • Spun aluminum flash collar
    • Galvanized steel foundation sleeve

Freight is dependent on multiple factors:

    A) the weight of the pole system,

    B) the location it is shipping from, and

    C) the location it is being delivered to.



While it is possible to place an estimated freight value here, we have found that the trucking industry rates change fairly rapidly, and it is to the customer's advantage to have an actual freight quoted rather than an estimate. (The estimate would typically be quite a bit higher than the actual freight to cover any possible changes between updates from the trucking companies.)



Please call our office to get an actual quote on freight. (See Contact Us for details).
