Continental Series Flagpoles
Continental Series Flagpoles
External Single Revolving - Rope Halyard The Continental Series from Concord American Flagpole combines heavy-duty aluminum flagpoles in 20' to 80' mounting heights with the highest quality hardware available to the industry today. These flagpoles meet the most stringent architectural standards and are certain to enhance the landscape of any business or industrial property.
Standard Specifications:
- Patented, Heavy-Duty Gold Anodized Aluminum Ball

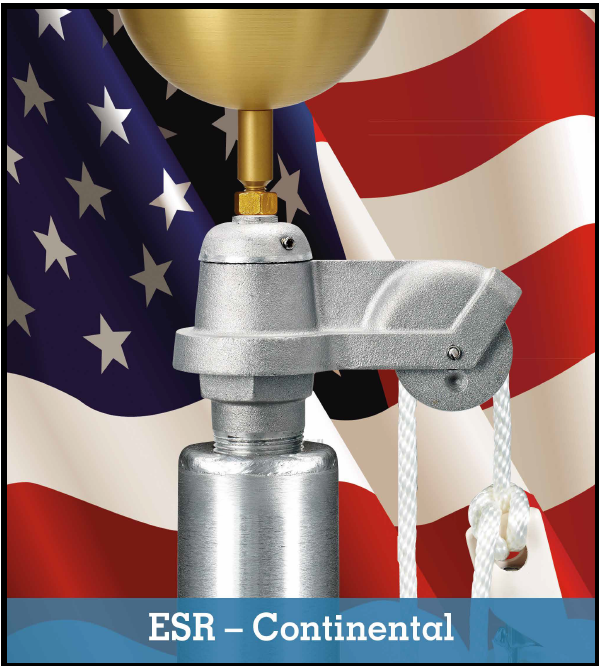

- Cast Aluminum Revolving Truck with Dual Stainless Aluminum Spindle
- Complete External Halyard Assembly - Rope Halyard - 5/16" #10 Polyester - Two (2) Solid Brass Swivel Flagsnaps - Two (2) Neoprene Flagsnap Covers
- 9" Cast Aluminum Cleat
- Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground Standard Upgrades – 10" and 12" Butt Diameters
- Heavy-Duty Truck with Dual SEALED Bearing
- Rope Halyard - Heavy-Duty 3/8" #12 Polyester
- Two (2) Heavy-Duty Brass Flagsnaps with Covers
- Heavy-Duty 5/8" Ball Stem
- Heavy-Duty Cast Aluminum Collar Continental Series - ESR Options Double Revolving System (Double Truck, Extra Cleat and Complete Double Halyard Assembly) – Specify EDR (External Double Revolving).
Compare heights
| Height | Butt / top dia. | Recommended flag | Foundation depth | Max wind ratings by wall & sections |
|---|---|---|---|---|
| 20' | 4" / 3" | 4'x6' | 2'-0" | .125" wall, 1-section: 109 mph flagged / 147 mph unflagged |
| 20' | 5" / 3" | 4'x6' | 2'-0" | .125" wall, 1-section: 136 mph flagged / 229 mph unflagged .156" wall, 1-section: 160 mph flagged / 262 mph unflagged .188" wall, 1-section: 182 mph flagged / 287 mph unflagged |
| 20' | 6" / 3.5" | 4'x6' | 2'-0" | .156" wall, 1-section: 208 mph flagged / 301 mph unflagged .188" wall, 1-section: 229 mph flagged / 328 mph unflagged |
| 25' | 4" / 3" | 5'x8' | 2'-6" | .125" wall, 1-section: 83 mph flagged / 106 mph unflagged |
| 25' | 5" / 3" | 5'x8' | 2'-6" | .125" wall, 1-section: 98 mph flagged / 136 mph unflagged .156" wall, 1-section: 111 mph flagged / 178 mph unflagged .188" wall, 1-section: 124 mph flagged / 209 mph unflagged |
| 25' | 6" / 3.5" | 5'x8' | 2'-6" | .156" wall, 1-section: 149 mph flagged / 230 mph unflagged .188" wall, 1-section: 168 mph flagged / 253 mph unflagged |
| 30' | 5" / 3" | 6'x10' | 3'-0" | .125" wall, 1-section: 78 mph flagged / 96 mph unflagged .125" wall, 2-section: 78 mph flagged / 96 mph unflagged .156" wall, 1-section: 86 mph flagged / 112 mph unflagged .156" wall, 2-section: 86 mph flagged / 112 mph unflagged .188" wall, 1-section: 94 mph flagged / 131 mph unflagged .188" wall, 2-section: 94 mph flagged / 131 mph unflagged |
| 30' | 6" / 3.5" | 6'x10' | 3'-0" | .156" wall, 1-section: 108 mph flagged / 174 mph unflagged .156" wall, 2-section: 108 mph flagged / 174 mph unflagged .188" wall, 1-section: 122 mph flagged / 197 mph unflagged .188" wall, 2-section: 122 mph flagged / 197 mph unflagged |
| 35' | 5" / 3" | 6'x10' | 3'-6" | .156" wall, 1-section: 73 mph flagged / 87 mph unflagged .156" wall, 2-section: 73 mph flagged / 87 mph unflagged .188" wall, 1-section: 79 mph flagged / 95 mph unflagged .188" wall, 2-section: 79 mph flagged / 95 mph unflagged |
| 35' | 6" / 3.5" | 6'x10' | 3'-6" | .156" wall, 1-section: 87 mph flagged / 116 mph unflagged .156" wall, 2-section: 87 mph flagged / 116 mph unflagged .188" wall, 1-section: 97 mph flagged / 145 mph unflagged .188" wall, 2-section: 97 mph flagged / 145 mph unflagged |
| 35' | 7" / 3.5" | 6'x10' | 3'-6" | .156" wall, 1-section: 110 mph flagged / 165 mph unflagged .156" wall, 2-section: 110 mph flagged / 165 mph unflagged .188" wall, 1-section: 127 mph flagged / 187 mph unflagged .188" wall, 2-section: 127 mph flagged / 187 mph unflagged |
| 40' | 7" / 3.5" | 8'x12' | 4'-0" | .156" wall, 1-section: 87 mph flagged / 122 mph unflagged .156" wall, 2-section: 87 mph flagged / 122 mph unflagged |
| 40' | 8" / 4" | 8'x12' | 4'-0" | .156" wall, 1-section: 107 mph flagged / 157 mph unflagged .156" wall, 2-section: 107 mph flagged / 157 mph unflagged .188" wall, 1-section: 123 mph flagged / 177 mph unflagged .188" wall, 2-section: 122 mph flagged / 177 mph unflagged |
| 45' | 8" / 3.5" | 8'x12' | 4'-6" | .188" wall, 2-section: 102 mph flagged / 144 mph unflagged |
| 50' | 8" / 3.5" | 10'x15' | 5'-0" | .188" wall, 3-section: 83 mph flagged / 117 mph unflagged |
| 50' | 10" / 4" | 10'x15' | 5'-0" | .188" wall, 3-section: 118 mph flagged / 164 mph unflagged |
| 55' | 10" / 4" | 10'x15' | 5'-6" | .188" wall, 3-section: 102 mph flagged / 139 mph unflagged |
| 60' | 10" / 4" | 12'x18' | 6'-0" | .188" wall, 3-section: 86 mph flagged / 118 mph unflagged .250" wall, 3-section: 104 mph flagged / 143 mph unflagged |
| 60' | 12" / 4" | 12'x18' | 6'-0" | .250" wall, 3-section: 137 mph flagged / 187 mph unflagged |
| 65' | 12" / 4" | 12'x18' | 6'-6" | .250" wall, 3-section: 122 mph flagged / 165 mph unflagged |
| 70' | 12" / 4" | 12'x18' | 7'-0" | .250" wall, 3-section: 109 mph flagged / 145 mph unflagged |
| 75' | 12" / 4" | 12'x18' | 7'-6" | .375" wall, 3-section: 126 mph flagged / 161 mph unflagged |
| 80' | 12" / 4" | 15'x25' | 8'-0" | .375" wall, 3-section: 107 mph flagged / 144 mph unflagged |
Choose a height, then the wall thickness and number of sections, then the finish.
