Estate Series Flagpoles
Estate Series Flagpoles
External Single Stationary - Rope Halyard The Estate Series from Concord American Flagpole provides commercial grade flagpoles that are a perfect fit for budget minded projects. Manufactured to the same quality standards as our Continental Series, our Estate Series offers flagpoles with heights from 15' to 35' which are ideal for residential homes, small businesses and commercial complexes.
Standard Specifications:
- Patented, Heavy-Duty Gold Anodized Aluminum Ball

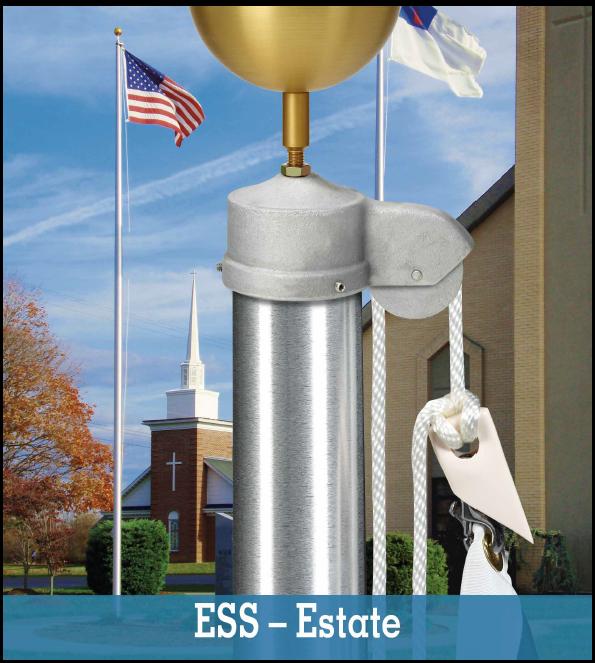

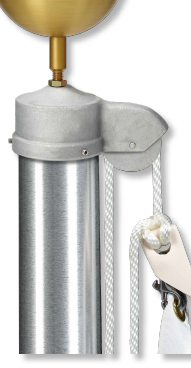

- Cast Aluminum Single Stationary Truck Assembly
- Complete External Halyard Assembly - Rope Halyard - 5/16" #10 Polyester - Two (2) Nickle Plated Cast Zinc Swivel - Two (2) Neoprene Flagsnap Covers
- 9" Cast Aluminum Cleat
- Spun Aluminum FC-11 Flash Collar
- PVC Ground Sleeve
Compare heights
| Height | Butt / top dia. | Recommended flag | Foundation depth | Max wind ratings by wall & sections |
|---|---|---|---|---|
| 15' | 3" / 2" | 3'x5' | 2'-0" | .125" wall, 1-section: 113 mph flagged / 149 mph unflagged |
| 20' | 3" / 2" | 4'x6' | 2'-0" | .125" wall, 1-section: 83 mph flagged / 108 mph unflagged |
| 20' | 4" / 3" | 4'x6' | 2'-0" | .125" wall, 1-section: 109 mph flagged / 147 mph unflagged |
| 20' | 5" / 3" | 4'x6' | 2'-0" | .125" wall, 1-section: 136 mph flagged / 229 mph unflagged .156" wall, 1-section: 160 mph flagged / 262 mph unflagged .188" wall, 1-section: 182 mph flagged / 287 mph unflagged |
| 25' | 3" / 2" | 5'x8' | 2'-6" | .125" wall, 1-section: 63 mph flagged / 83 mph unflagged |
| 25' | 4" / 3" | 5'x8' | 2'-6" | .125" wall, 1-section: 83 mph flagged / 106 mph unflagged |
| 25' | 5" / 3" | 5'x8' | 2'-6" | .125" wall, 1-section: 98 mph flagged / 136 mph unflagged .156" wall, 1-section: 111 mph flagged / 178 mph unflagged .188" wall, 1-section: 124 mph flagged / 209 mph unflagged |
| 30' | 4" / 3" | 6'x10' | 3'-0" | .125" wall, 1-section: 66 mph flagged / 85 mph unflagged .125" wall, 2-section: 66 mph flagged / 85 mph unflagged |
| 30' | 5" / 3" | 6'x10' | 3'-0" | .125" wall, 1-section: 78 mph flagged / 96 mph unflagged .125" wall, 2-section: 78 mph flagged / 96 mph unflagged .156" wall, 1-section: 86 mph flagged / 112 mph unflagged .156" wall, 2-section: 86 mph flagged / 112 mph unflagged .188" wall, 1-section: 94 mph flagged / 131 mph unflagged .188" wall, 2-section: 94 mph flagged / 131 mph unflagged |
| 35' | 5" / 3" | 6'x10' | 3'-6" | .156" wall, 1-section: 73 mph flagged / 87 mph unflagged .156" wall, 2-section: 73 mph flagged / 87 mph unflagged .188" wall, 1-section: 79 mph flagged / 95 mph unflagged .188" wall, 2-section: 79 mph flagged / 95 mph unflagged |
Choose a height, then the wall thickness and number of sections, then the finish.
